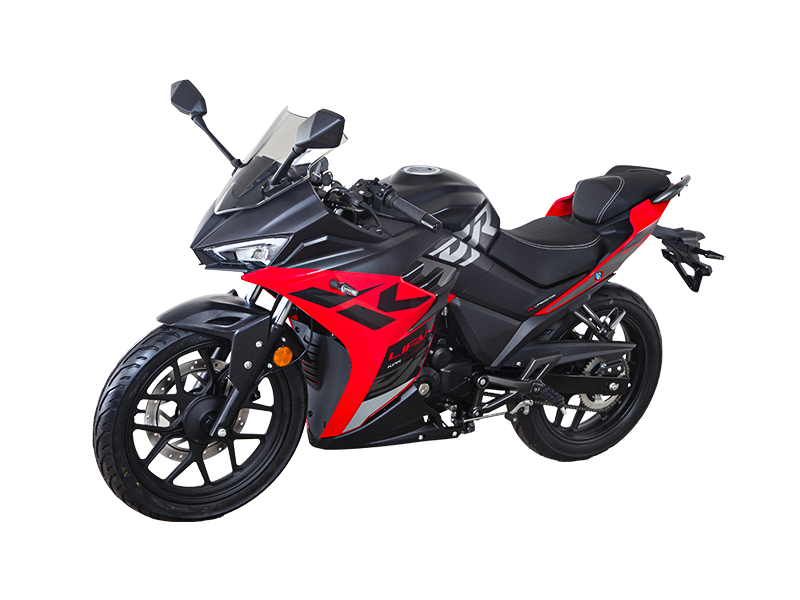

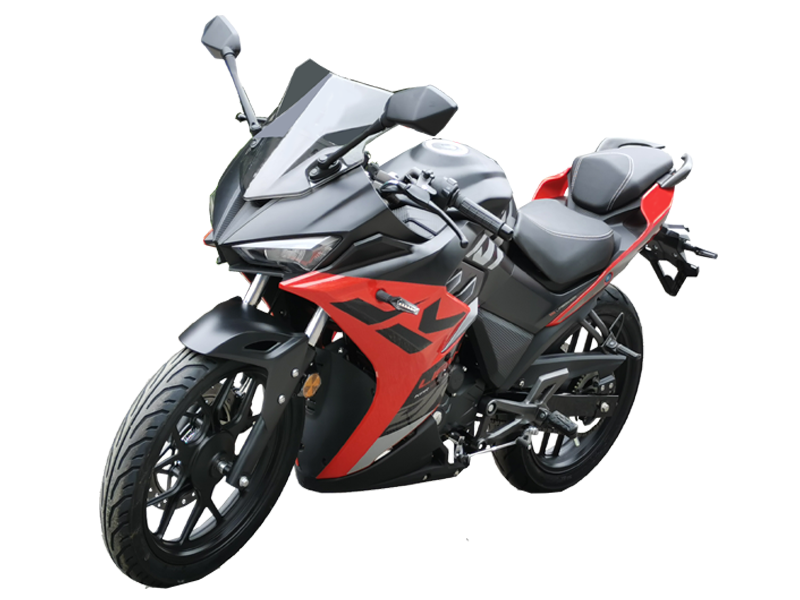

KPR200/250 (LF200-10Q/LF250-10T)
CODE LF200-10Q/LF250-10T198 CCFULL SPEC ON FILE
Specification sheet
| Motorcycle Model | LF200-10Q/LF250-10T (NRF200/NRF250 4V) |
|---|---|
| Dimension (L×W×H mm) | 2060×760×1114/2060×790×1115 |
| Wheelbase (mm) | 1329/1335 |
| Ground Clearance (mm) | 158 |
| Net Weight (kg) | 159 |
| Seat Height (mm) | 770 |
| Fuel Tank Capacity (L) | 14 |
| Engine Type | vertical single-cylinder, water-cooled, four-stroke |
| Bore×Stroke (mm) | 65.5×58.8/77.0×53.6 |
| Displacement (mL) | 198/250 |
| Compression Ratio | 11.5:1/ 12.2:1 |
| Max. Power (Kw@rpm) | 15.0@9000/20.5@9000 |
| Max. Torque (N.m@rpm) | 17.5@7500 23.5@7000 |
| Start | electric |
| Transmission | 6-gears, hand-clutched |
| Brake (front/rear) | disc/ disc |
| Wheel | Al-alloy |
| Tire (front/rear) | 100/80-17/130/70-17 |
| Max. Speed (km/h) | 120 /130 |
| Economical Fuel Consumption (km/L) | ≥35.75 / ≥27.78 |
| Fuel Supply System | electronic fuel injection |
Same platform
| Model | CC |
|---|---|
| AM100 | 100 |
| AMAZING 150 | 150 |
| CAMEL 125 | 124 |
| CAMEL 150 | 158 |
| CAMEL125 | 149 |
